Audio, Navigation, Anti-Theft, Airbag Control -- Repair (G12)
>>
65 13 Loudspeaker And Cover Panel
>>
65 13 065 Removing and installing front speaker holder (in dashboard trim)
>>
Remove front speaker holder
Remove front speaker holder

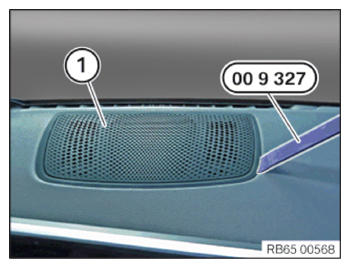

Unclip trim (1) with special tool
0 496 571 (00 9 327)
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Loosen screws (1).
Raise and turn over the speaker holder (2).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the connector (1).
Remove the speaker holder (2).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
