11 61 365 Removing and installing/replacing left-hand charge air duct (N20)

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

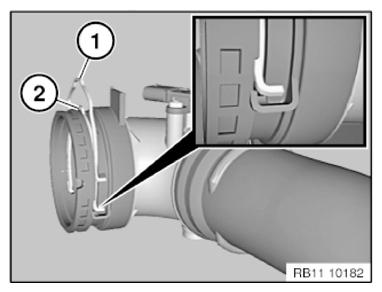

Fig 1: Identifying Left-Hand Charge Air Duct Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock and disconnect line (2).

Unlock snap fastener (3).

Unlock snap fastener (4) from above and remove the charge air line.

NOTE: Shown with engine/cooling package removed for better overview.

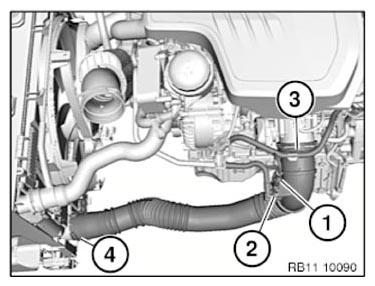

Fig 2: Identifying Charge Air Line, Plug Connection And Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Visually inspect the form sealing ring (1) for correct position and damage.

VDA couplings are correctly fitted when they snap into place with an audible click.

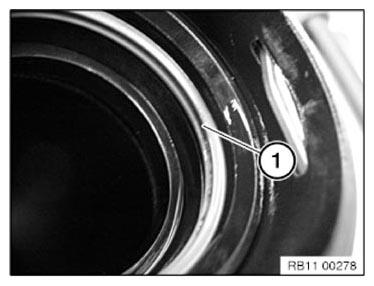

Fig 3: Identifying VDA Couplings Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
