13 71 150 Removing right clean air pipe (S63 B44 T 0)

Necessary preliminary work:

• Remove right AIR DUCT

Release screws (1).

Tightening torque 13 71 4AZ .

Unlock and detach engine vent line (2).

Disconnect clean air pipe (3) from exhaust turbocharger and remove.

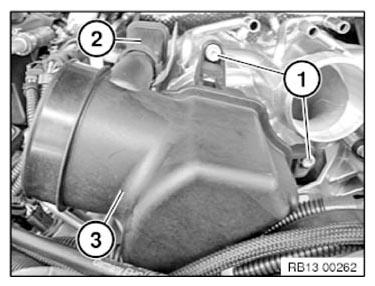

Fig 1: Identifying Engine Vent Line, Air Pipe And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

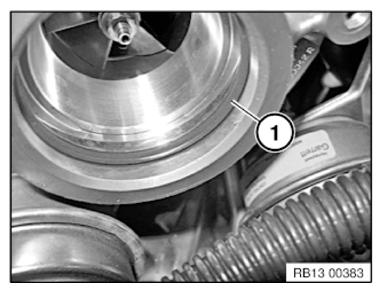

Renew sealing ring (1) and coat with light film of engine oil.

Fig 2: Identifying Engine Oil Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
