51 71... Removing and installing/replacing (front) left or right suspension cross-brace
Special tools required:
IMPORTANT:
Driving without the suspension cross-brace is not permitted. (risk of damage to the body).
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .

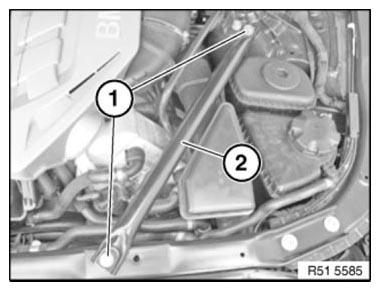

Release screws (1).
Tightening torque 51 61 1AZ AND 2AZ .
Remove suspension cross-brace (2).
Installation:
Make sure suspension cross-brace (2) is in correct installation position. Screw with washer is fitted at connection, front top.
