12 51 215 Replacing wiring harness section for Valvetronic servomotor (N20)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove ACOUSTIC COVER

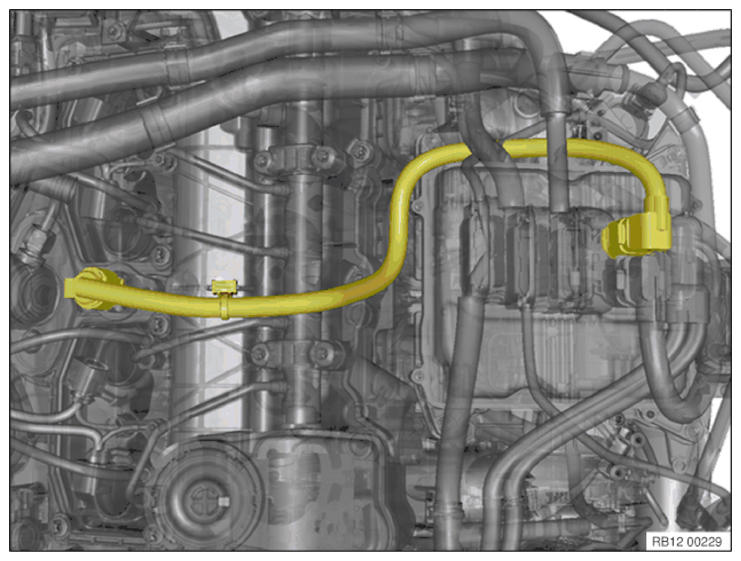

Fig 1: Overview Of Wiring Harness Section For Valvetronic Servomotor On DME Control Unit
Courtesy of BMW OF NORTH AMERICA, INC.

Undo wiring harness section for Valvetronic servomotor on DME control unit and Valvetronic servomotor and pull off.

Undo, feed out and remove wiring harness section from clamps.

Installation note:

Check wiring harness installation arrangement.

Check plug connections for correct fit.

Check stored fault message.

Delete fault memory.
