22 11 110 Replacing left engine support arm (N20, N26)

Necessary preliminary tasks  :

• Secure ENGINE IN INSTALLATION POSITION .
• Remove front UNDERBODY PROTECTION .
• Remove front CHARGE-AIR DUCT .

Release screws (1).

Tightening torque 22 11 3AZ .

Remove engine support arm.

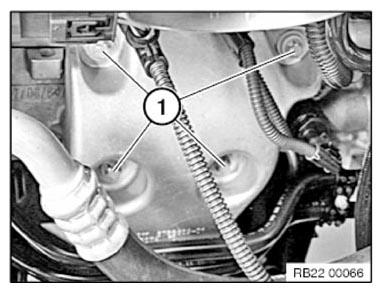

Fig 1: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
