22 11 100 Replacing right engine support arm (N20, N26)

Necessary preliminary tasks  :

• Secure ENGINE IN INSTALLATION POSITION .
• Remove front UNDERBODY PROTECTION .

Release screws.

Tightening torque 22 11 3AZ

Remove engine support arm.

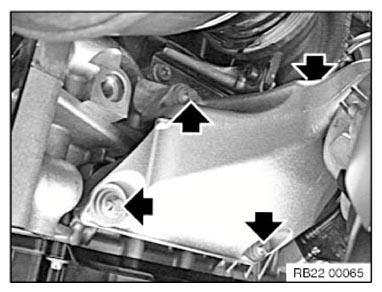

Fig 1: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
