22 11 001 Replacing right engine mount (N55)

Necessary preliminary work  :

• Remove right ENGINE SUPPORT ARM .

Release screws (1).

Tightening torque 22 11 1AZ

Remove engine mount.

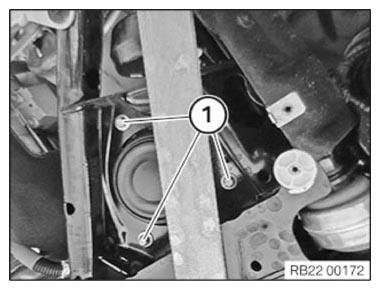

Fig 1: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note  :

Rubber part (1) of engine mount must point to center of vehicle.

Fig 2: Identifying Engine Mount Rubber Part

Courtesy of BMW OF NORTH AMERICA, INC.
