11 36 655 Removing and installing/replacing both solenoid valves (N55)
>>
Removing and installing/replacing ignition coil cover (N55)
Removing and installing/replacing ignition coil cover (N55)
Pull ignition coil cover (1) upward off of rubber mount.

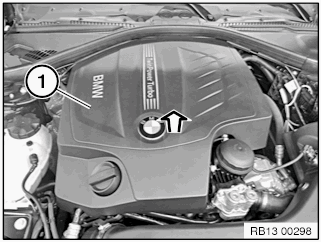

Fig 1: Removing Ignition Coil Cover
Courtesy of BMW OF NORTH AMERICA, INC.
