11 53 000 Removing and installing/replacing coolant thermostat (N20, N26)
WARNING:
Risk of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
Recycling
Observe country-specific waste disposal regulations.
Catch and dispose of drained coolant in a suitable container.
IMPORTANT:
Protect plug connections against coolant and contamination.
Cover plug connections with suitable materials.
Cover plug connections with suitable materials.
Necessary preliminary tasks :
- Remove top CLEAN AIR PIPE
- Remove ENGINE VENTILATION LINE

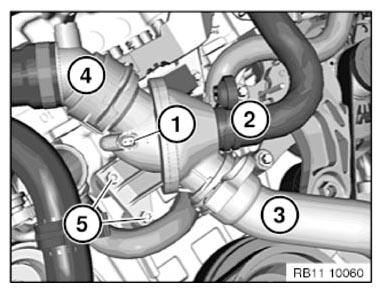

Disconnect plug connection (1).
Disconnect coolant hoses (2-4) on thermostat with CLAMPING TONGS .
Disconnect coolant hoses (2-4) from thermostat.
Release screws (5) and remove thermostat.
Tightening torque 11 53 1AZ .
Assemble engine.
Top up COOLANT .
