Engine Electrical System - Repair (F30, 6-CYL RWD)
>>
12 51 Engine Wiring Harness
>>
12 51 245 Removing and installing/replacing transmission module engine wiring
>>
REP-TAT-P-1251-02 Connect the connector to the DME control unit and the power distribution box (PDM)
REP-TAT-P-1251-02 Connect the connector to the DME control unit and the power distribution box (PDM)
Route and secure the wiring harnesses.

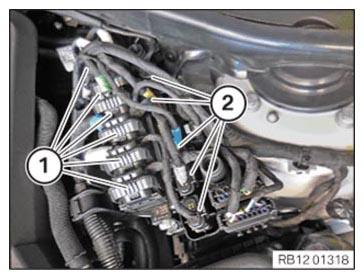

Connect and audibly lock all connectors (1) to the DME control unit from back to front.
Connect all connectors (2) to the power distribution box (PDM) and lock audibly.
