Tightening Belt Pulley

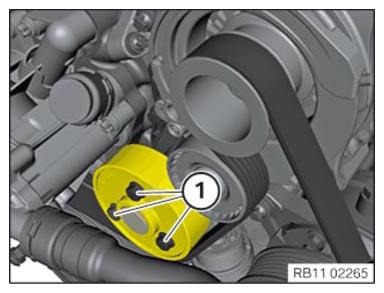

- If the screws (1) are reused, clean the thread and coat with Loctite 243.
ADHESIVE SPECIFICATION
| Screw lock Loctite Stick 243, medium strength |
10 ml, Bottle |
83192210339 |
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Belt pulley to coolant pump |
M6
Replace screws. |
Tightening torque |
8 Nm |
