Installing The Transmission Cross Member For The Transmission Bearing

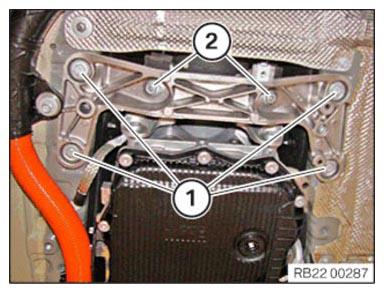

• Install transmission cross-member.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATION



  Transmission cross member to rubber mounts
  M8	Tightening torque	19 Nm

• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Transmission cross member to body
M8	Tightening torque	19 Nm
