Installing Switch Trim On The Front Left Or Right Front Door Trim Panel

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

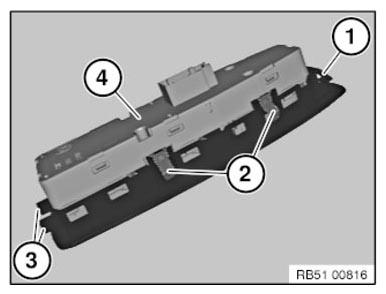

Check latch mechanism (1), retaining clip (2) and guide (3) of the switch unit (4) for damages.
NOTE: TECHNICAL INFORMATION
The switch trim must be replaced if the detents, clamps or guides are damaged.
For additional information see: REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH, DRIVER'S SIDE .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector.
Position and clip in switch trim.
