Connecting The Battery Earth Lead
NOTE:
TECHNICAL INFORMATION
For additional information see:

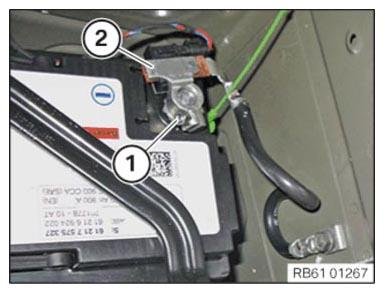

- Connect battery earth lead with intelligent battery sensor (IBS) (2) to negative battery terminal.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATION
| Battery cable on the battery |
| M6 |
Tightening torque |
5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
