Connect The Coolant Line For The Low-Temperature Coolant Circuit

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

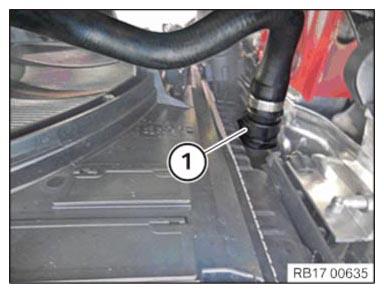

• Connect and lock coolant line (1).

  The coolant line (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install cover (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Wheel arch cover
  Screw	Tightening torque	3 Nm
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

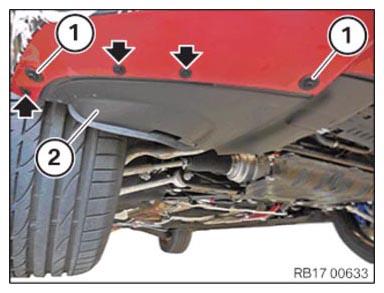

• Clip in and lock the clamps (arrows).

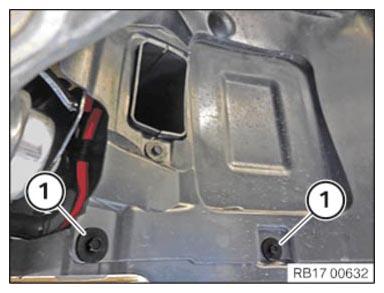

• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Wheel arch cover
Screw	Tightening torque	3 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
