Removing the drive belt for coolant pump
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING DESIGN COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING BOTH COOLANT EXPANSION TANKS .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING ACOUSTIC COVER AT FRONT .

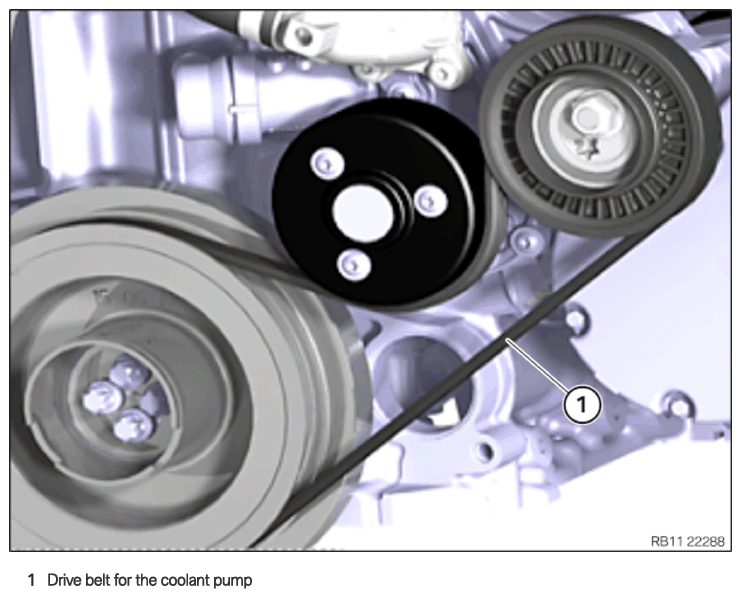

Drive belt for the coolant pump
NOTE:
TECHNICAL INFORMATION
Replace drive belt if it is contaminated with coolant and oil residue.
Replace drive belt if it is contaminated with coolant and oil residue.
- Thread the cover out (1)
and remove it.
- Loosen nut (1)
by one rotation.
- Release the tensioning pulley in the direction of arrow. NOTE: TECHNICAL INFORMATION
If the drive belt is reused: Mark the direction of rotation and reinstall the drive belt in same direction of rotation. - Thread the drive belt out (1) and remove it.
