61 21 008 Removing and installing (replacing) battery (auxiliary battery)

WARNING: Observe SAFETY INFORMATION for handling hybrid cars.
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
WARNING: Observe SAFETY INFORMATIONS for handling battery.
Follow instructions for DISCONNECTING AND CONNECTING BATTERY .
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .

To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. OBSERVE NOTE ON BATTERY REPLACEMENT .

Remove service flap (1) from luggage compartment trim panel on the right.

Fig 1: Removing Service Flap From Luggage Compartment Trim Panel
G10098408Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Before disconnecting the battery earth lead, it must be ensured that the vehicle goes to sleep. Observe a waiting period of at least 2 minutes.

Loosen nut (1).

Tightening torque: 61 21 1AZ .

Disconnect battery earth lead (2) from battery and secure at side.

Fig 2: Identifying Nut And Battery Earth Lead
G10098409Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Slacken nut (3) a few turns.

Remove holder (2) and place to one side.

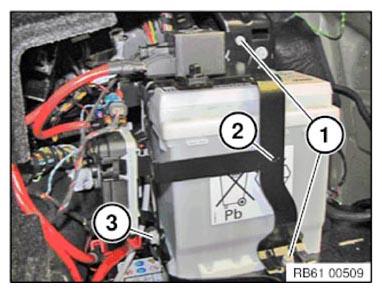

Fig 3: Identifying Slacken Nut And Holder
G10098426Courtesy of BMW OF NORTH AMERICA, INC.

Detach power distribution box (2) from holder (1) in direction of arrow.

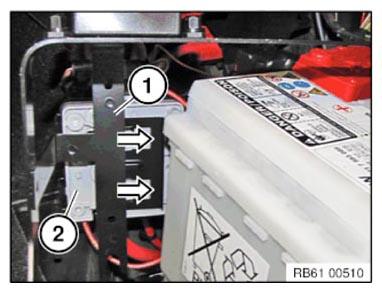

Fig 4: Detaching Power Distribution Box From Holder
G10098427Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent hose (2). Open lid (1). Loosen nut (3).

Tightening torque: 61 21 1AZ

Remove positive battery terminal (4). Remove auxiliary battery.

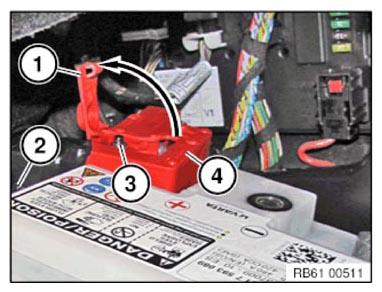

Fig 5: Opening Lid
G10098428Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
