11 12 070 Removing and installing/renewing acoustic cover (B58)

Removal:

Release acoustic cover (1) upwards from the marked rubber plugs.

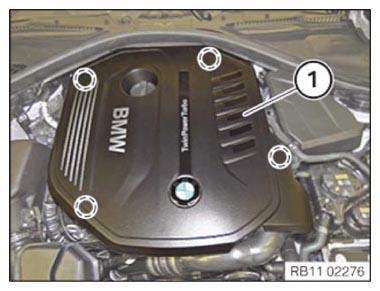

Fig 1: Identifying Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure that the rubber plug (1) is correctly seated.

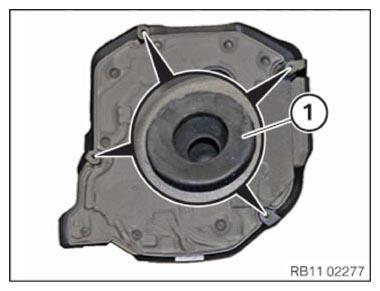

Fig 2: Identifying Rubber Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Install acoustic cover (1) and clip in the rubber plugs.

Fig 3: Identifying Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.
