12 14 650 Replacing intake plenum (N55 Hybrid)
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :
The following points must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary work:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove rear ignition coil cover.

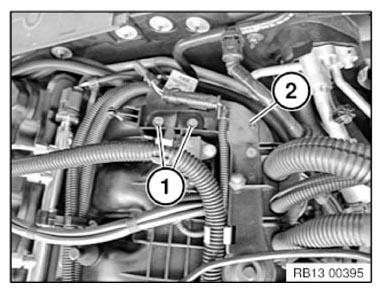

Release screws (1).
Slide cable channel (2) to one side.
Unlock connector (1) and remove.
Release screws and pull suction pressure sensor (2) out of intake plenum.
Tightening torque: 13 62 4AZ .
Installation note:
Check sealing ring for damage. Replace damaged sealing ring.
When installing, coat sealing ring with suitable lubricant.
NOTE:
Reassemble the vehicle.
Check stored fault message.
Clear diagnostic fault entries from fault memory.
Check stored fault message.
Clear diagnostic fault entries from fault memory.
