2208573 Tool set AM: Notes

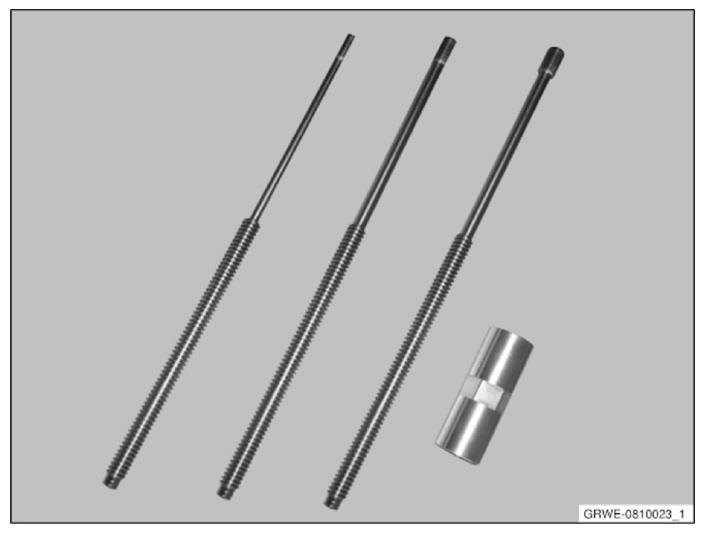

Fig 1: Identifying Tool Set (2208573)

G11156769

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Threaded spindle set for removing and installing the rubber mount on the rear axle support.
