Removing intake port (N20)
WARNING: This page is about a different variant/trim than selected.

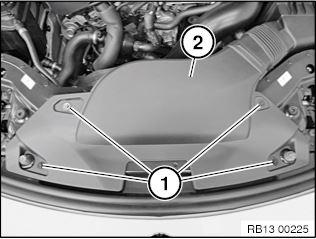

Release screws (1).
Tightening torque 13 71 1AZ .
Detach intake port (2) from intake silencer housing and remove toward the top.
Release screws (1).
Tightening torque 13 71 1AZ .
Detach intake port (2) from intake silencer housing and remove toward the top.
