Storage Location

WARNING: This page is about a different variant/trim than selected.

Individual

Consisting of:

1 = 0490483 Spindle

NOTE: (pressure spindle with bridge)

2 = 0490484 Spindle

NOTE: (adjusting spindle (2 x) with knurled nuts (4 x))

3 = 0490485 Spindle

NOTE: (pressure spindle, side)

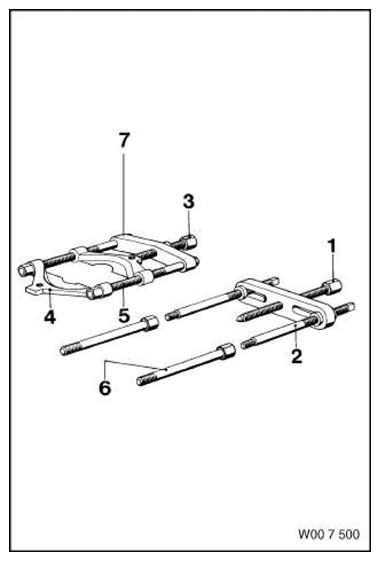

Fig 1: Identifying Extractor AM (007500)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0490486 Clip

NOTE: (adjusting jaw (2 x))

5 = 0490487 Screw

NOTE: (adjusting screws (1 x) with nut) For adjusting jaw (1 x)

6 = 0490488 Extension

NOTE: (extension (2 x))

7 = 0490489 Bridge
