Manual emergency release of parking lock from passenger compartment is not possible with GA8HP transmissions for
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
- F01/F02/F03/F04 GA8HP from production date 09/2010
- F07 GA8HP from production date 03/2010
- F10 / F11 GA8HP as from production date 06/2010
Before removing the underbody panel, always check inside the vehicle to be certain the parking lock emergency release is not fitted.
From the vehicle underbody:
Raise vehicle.
Manual emergency release of parking lock
- Remove UNDERBODY PROTECTION

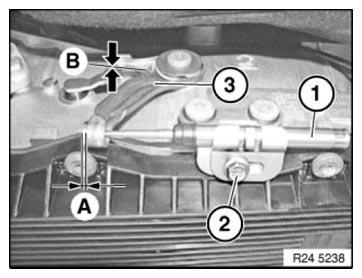

- Screw in screw (1) with hexagon socket (SW5) until parking lock is released by lever (2).
- It is imperative that bolt is always replaced.
- Clean thread with screw tap size M6X1, 0.
Screw new micro-encapsulated screw (1) into thread.
IMPORTANT:
Screwing in and adjusting of screw to 1.5 to 2.5 mm above thread lip (A) must occur within 3 minutes.
The screw may no longer be turned after 3 minutes (hardening of adhesive), otherwise it must be replaced.
The screw may no longer be turned after 3 minutes (hardening of adhesive), otherwise it must be replaced.
From passenger compartment:
- Refer to MANUAL EMERGENCY UNLOCKING OF PARKING LOCK .
From underneath vehicle with Bowden cable:
- Remove rear UNDERBODY PROTECTION .
- Press release lever (3) backwards.
If permanent release is desired, fix lever in position (e.g. with cable strap).
Locking:
- Let go of release lever (3) or undo means by which it is secured.
