24 50 021 Replacing emergency release
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
The emergency release is discontinued for GA8HP transmissions:
- F01/F02/F03/F04 GA8HP from production date 09/2010
- F07 GA8HP from production date 03/2010
Necessary preliminary tasks:
- Remove CENTRE CONSOLE .
- Remove rear UNDERBODY PROTECTION .
- Remove left retaining plate from underbody protection
- Support transmission with lifter.
- Remove TRANSMISSION CROSS MEMBER .
- Remove transmission support block.

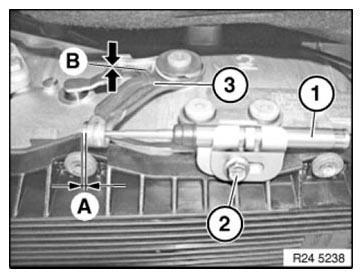

Release screw (2).
Remove cable (1).
Installation note:
Adjust GEARSHIFT LEVER .

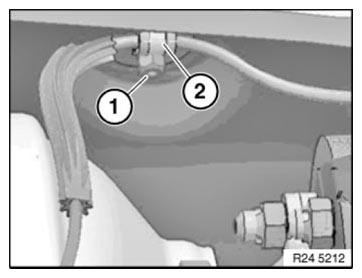

Slacken nut (1).
Tightening torque 24 51 2AZ .
Release cable from pipe clamp (2).
NOTE:
- Reinstall transmission support bracket and transmission cross member
- Lower vehicle

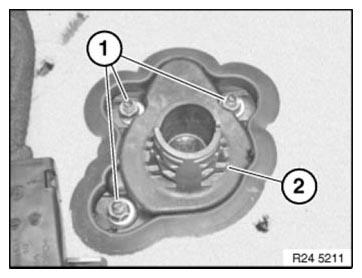

Unscrew nuts (1).
Remove the emergency release (2) upwards.
