51 34 191 Replacing left or right fixed door window in rear window frame

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON WINDOW FRAME of rear door.
Remove COVER ON DOOR WINDOW FRAME .
Remove WINDOW CAVITY COVER STRIP on inside of rear door.

Version with roller sun blind only:

Remove ROLLER SUN BLIND .

Partially pull rubber guide (1) out of side window guide.

Release screws underneath in window guide.

Tightening torque: 51 35 5AZ .

Fig 1: Pulling Rubber Guide From Side Window Guide

G06885759

Courtesy of BMW OF NORTH AMERICA, INC.

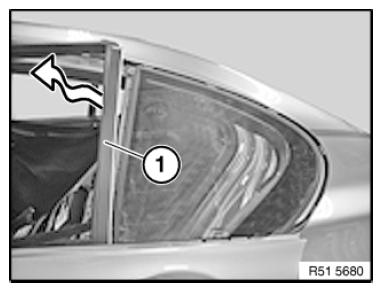

Feed guide rail (1) out of door structure.

Fig 2: Removing Guide Rail From Door Structure

G08511746

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Replacement only:

Apply butyl from rear in screwing area.

Fig 3: Identifying Rear Window Frame Screwing Area

G06885771

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 51 35 3AZ .

Fig 4: Identifying Rear Window Screws

G06885772

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully remove door window glass.

Fig 5: Removing Door Window Glass

G06885773

Courtesy of BMW OF NORTH AMERICA, INC.
