51 12 164 Removing and installing/replacing trim on bumper trim

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

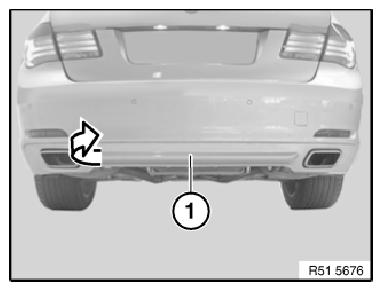

Fig 1: Removing Rear Bumper Trim
G08511333Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All retaining lugs and guides on trim for bumper trim at rear (1) must not be damaged.

Fig 2: Identifying Rear Bumper Trim
G08511334Courtesy of BMW OF NORTH AMERICA, INC.
