51 11 773 Replacing front lower left or right deformation element

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR BUMPER PANEL AT FRONT BOTTOM .

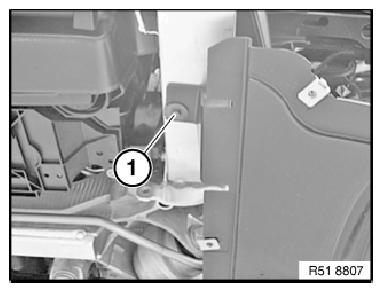

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

Fig 1: Identifying Bottom Cover Screw

G08511314

Courtesy of BMW OF NORTH AMERICA, INC.

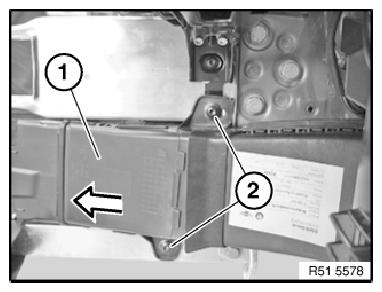

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

G08511315

Courtesy of BMW OF NORTH AMERICA, INC.

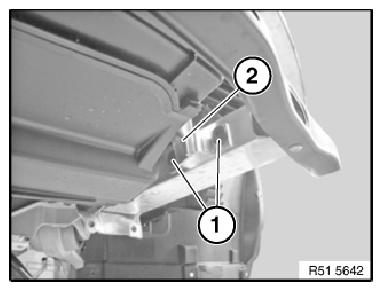

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

Fig 3: Identifying Vertical Connection And Screws

G08511316

Courtesy of BMW OF NORTH AMERICA, INC.

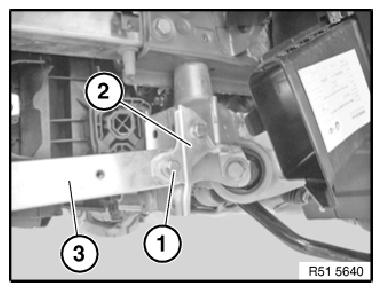

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

Fig 4: Identifying Front Axle Support Adapter Plate, Deformation Element And Bolt

G08511317

Courtesy of BMW OF NORTH AMERICA, INC.
