51 11 370 Removing and installing/replacing front left or right trim strip

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Build date up to 07/2012:

Tape off bumper panel (2) in the working area.

Unclip trim strip (1) from the bumper panel (2) using special tool 00 9 317 and remove to the front.

Installation note:

Latch mechanisms on trim strip (1) must not be missing or damaged.

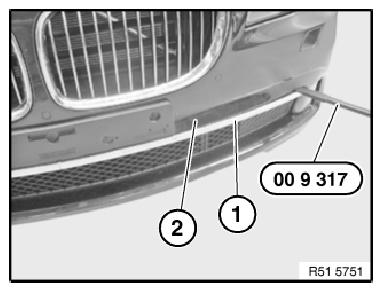

Fig 1: Removing Trim Strip From Bumper Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 07/2012:

Tape off bumper panel in the working area.

Unclip trim strip (1) from the bumper panel using special tool 00 9 317 and remove to the front.

Installation note:

First feed in trim strip (1) with guide (2) into bumper panel, then clip in.

Latch mechanisms on trim strip (1) must not be missing or damaged.

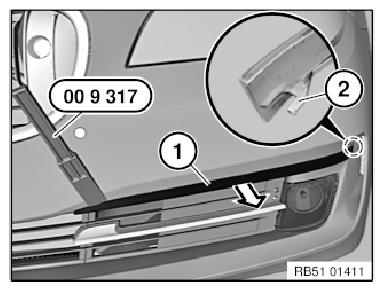

Fig 2: Disconnecting Trim Strip From Bumper Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
