For replacement with version as of 07/2012

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release latch mechanisms (1) and remove trim bar from ornamental grille (2).

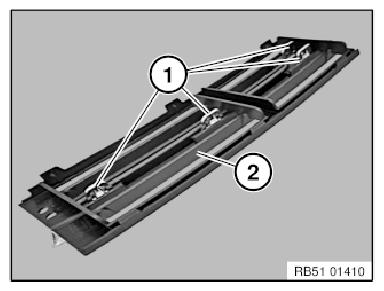

Fig 1: Identifying Latch Mechanisms And Ornamental Grille
G08511302Courtesy of BMW OF NORTH AMERICA, INC.
