51 14 010 Removing and installing/replacing rear BMW badge
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The notes on COMPONENT BONDING WITH DOUBLE-SIDED ADHESIVE TAPE serve as the basis for this repair instruction and must be observed without fail.

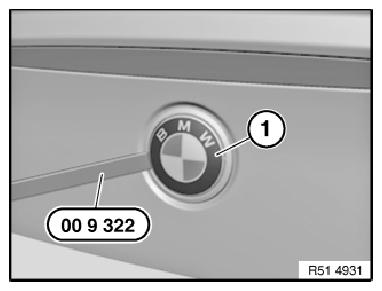

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .
Installation note:

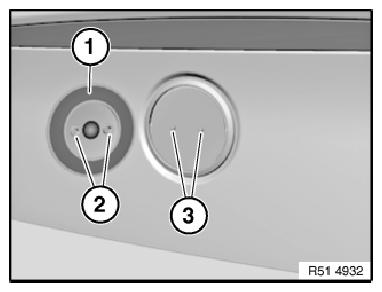

Pull liner* off adhesive tape (1).
Position plate over guides (2 and 3) and press down firmly.
* Liner is the protective film on a new badge.
