65 75 080 Removing and installing/replacing interior movement detection module in left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL

Release screws (1).

Remove microwave sensor (2) from door trim panel (3).

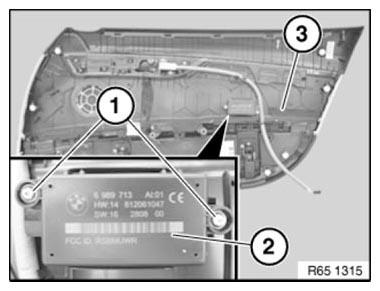

Fig 1: Identifying Microwave Sensor With Door Trim Panel And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In vehicles built after 10/2011 the microwave sensor (2) with shielding (3) is fitted. When replacing, use shielding (3) for all vehicles.

Fig 2: Applying Shielding To Existing Microwave Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the event of the customer complaint "Frequent false alarm deployment" do not automatically replace the microwave sensor (2). In this case stick shielding (3) to existing microwave sensor (2).

Pull off film from shielding (3). Lay down shielding (3) on a level surface so that the bonding surface faces upwards.

Position microwave sensor (2) flush (see small arrows) on shielding (3) upright as pictured and press down. Fastening openings (2) must point to the rear. Stick remaining sides of shielding (3) onto microwave sensor (2) and press down.
