65 12 230 Removing and installing (replacing) DAB tuner

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove LUGGAGE COMPARTMENT TRIM ON LEFT SIDE PANEL

Lever out expansion rivets (1).

Feed out storage compartment (2) towards top.

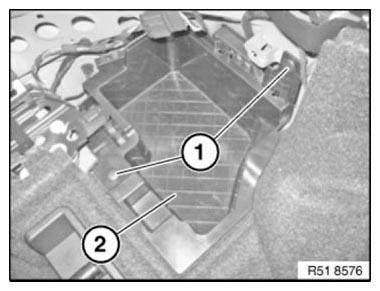

Fig 1: Identifying Storage Compartment And Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise DAB tuner including bracket (2).

Unlock and disconnect associated plug connections (3).

Feed out DAB tuner including bracket (2).

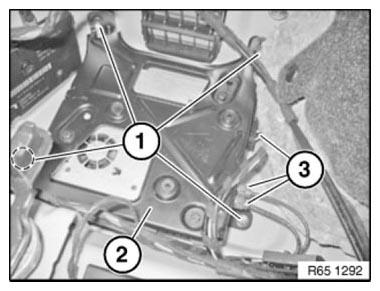

Fig 2: Identifying DAB Tuner With Plug Connections And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1).

Remove bracket (2) from DAB tuner.

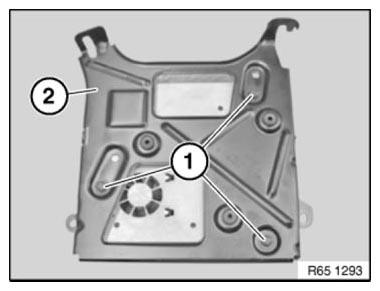

Fig 3: Identifying DAB Tuner Bracket And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out vehicle programming/coding.
