54 37... General notes regarding repair and troubleshooting on the hardtop
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
The hardtop is a complex mechanical system. Proper function is achieved through precise adjustments of all components at the works.
Not all components can be adjusted at the works.
To avoid secondary problems after repairs, only repairs and adjustments that are explicitly approved by BMW may be performed.
Thorough troubleshooting must always be completed prior to beginning with hardtop repairs.
In addition to the diagnosis system and repair instructions, video sequences are available on DVD.
VHT E93 Analysis and repair instructions Part 1 (01 69 0 038 434).
VHT E93 Analysis and repair instructions Part 2 (01 69 0 038 662).
NOTE:
Troubleshoot in the event of water penetration according to the specifications on the DVD.

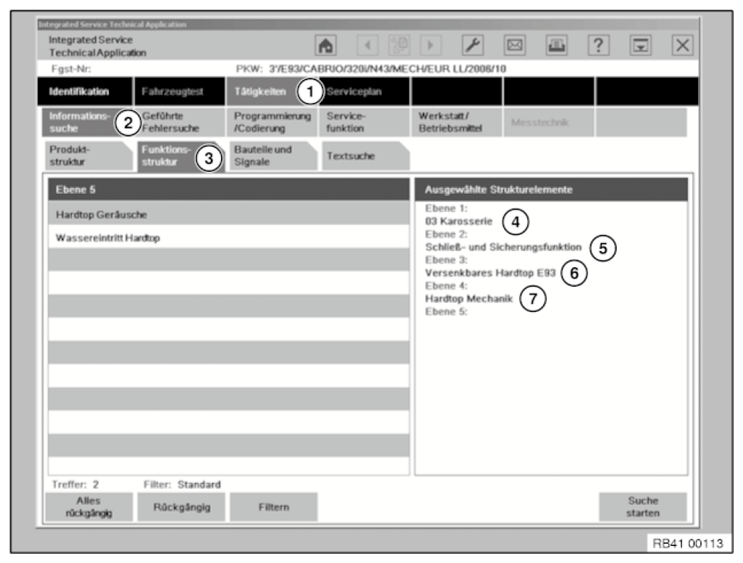

The required procedures in the diagnosis system are found under:
- Activities
- Information search
- Function structure
- Level 1: 03 Body
- Level 2: Locking and security functions
- Level 3: Retractable hardtop
- Level 4: Hardtop mechanism (E93 only)
