63 99 145 Replacing bulb for front left (or right) side lights (xenon headlight)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights).

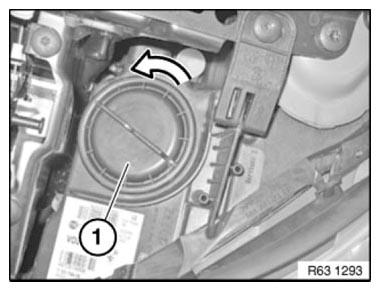

Turn housing (1) in direction of arrow and remove.

Fig 1: Removing Housing

Courtesy of BMW OF NORTH AMERICA, INC.

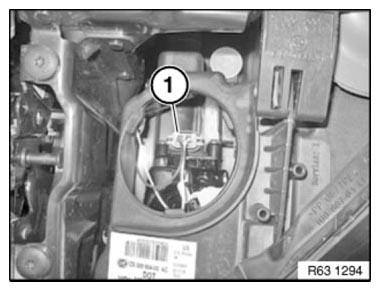

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

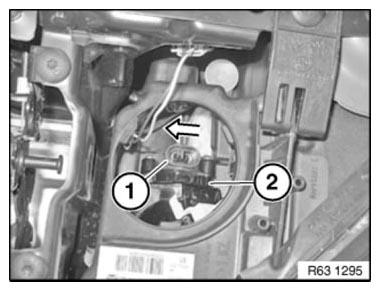

Turn bulb holder (1) in direction of arrow and pull out of headlight (2).

Installation:

Note type of bulb.

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
