41 62 000 Removing And Installing Rear Lid
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Necessary preliminary tasks:
- Remove PANEL FOR REAR LID
- Disconnect all plug and socket cable connections on rear lid.
Operation is described on the left side. Right side identical.

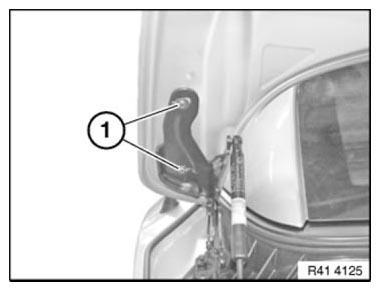

Release screws (1).
Tightening torque 41 62 1AZ .
Remove rear lid.
Installation:
Adjust REAR LID .
Replacing rear lid

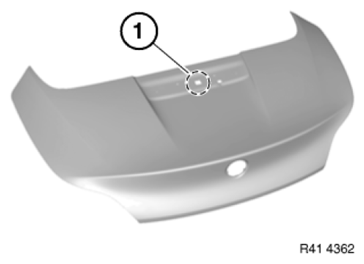

On vehicles without an additional aerial, designated opening (1) must be sealed with 40 x 40 mm masking foil.
