51 23 110 Removing and installing/replacing left bonnet lock

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and pull out engine compartment lid lock (2) in upward direction.

Tightening torque 51 23 2AZ .

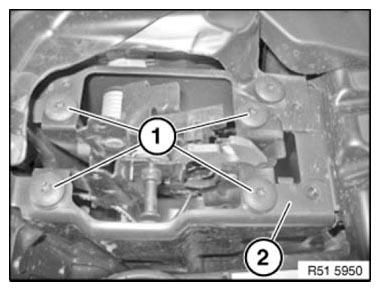

Fig 1: Identifying Engine Compartment Lid Lock With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).

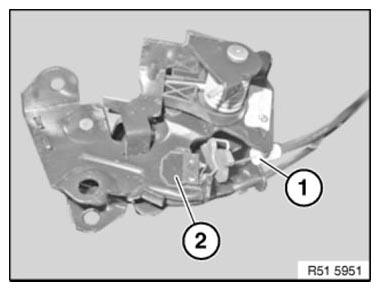

Fig 2: Identifying Engine Compartment Lid Lock With Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
