64 11.. Overview of actuator drives on heater/air conditioner
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

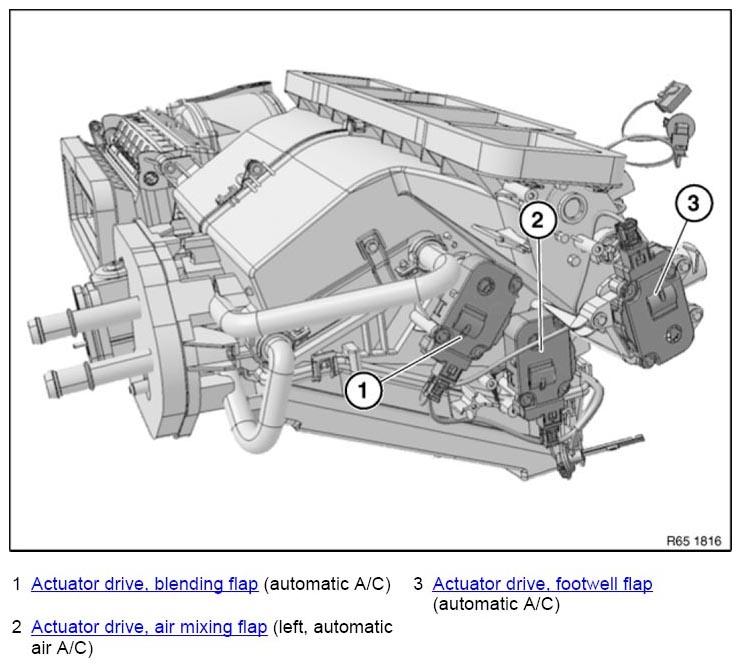

- Actuator drive, blending flap (automatic A/C)
- Actuator drive, air mixing flap (left, automatic air A/C)
- Actuator drive, footwell flap (automatic A/C)
NOTE:
The High equipment specification heater/air conditioner is pictured!

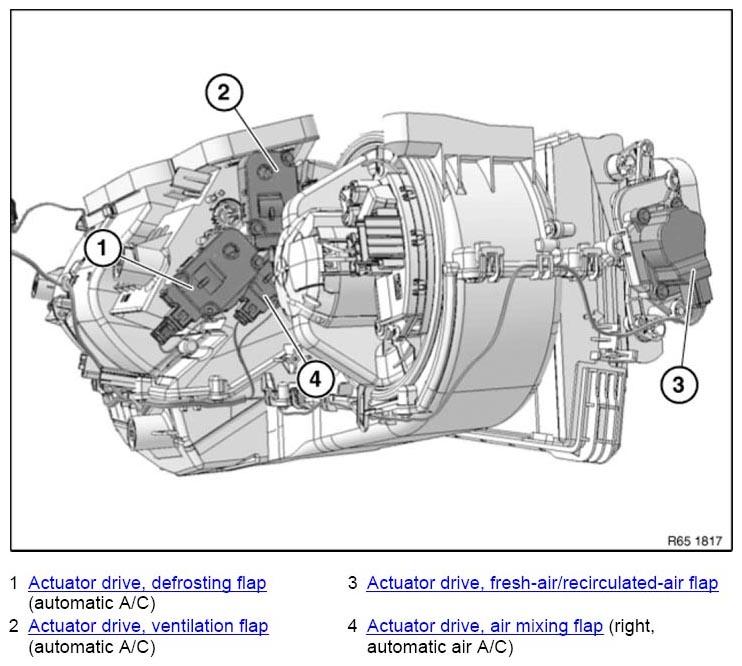

- Actuator drive, defrosting flap (automatic A/C)
- Actuator drive, ventilation flap (automatic A/C)
- Actuator drive, fresh-air/recirculated-air flap
- Actuator drive, air mixing flap (right, automatic air A/C)
NOTE:
The High equipment specification heater/air conditioner is pictured!
