64 11 991 Removing and installing/replacing sensor for automatic recirculated air control (AUC sensor)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

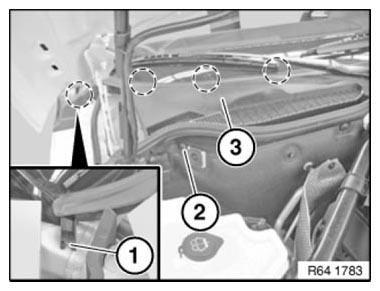

Lever out plastic slips (1) on cowl panel (3) at marked points.

Lever out plastic clip (2).

Raise cowl panel (3) until AUC sensor is accessible.

Fig 1: Identifying Plastic Slips On Cowl Panel

Courtesy of BMW OF NORTH AMERICA, INC.

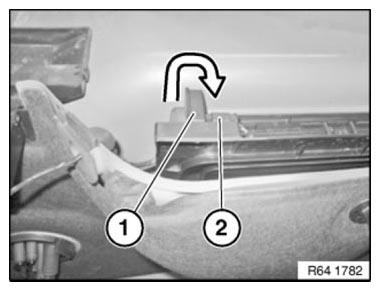

Unlock AUC sensor (1) in direction of arrow and remove.

Unfasten plug connection (2) and disconnect.

Installation:

Make sure AUC sensor (1) is correctly seated.

Fig 2: Removing AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
