64 11 377 Removing and installing (replacing) control panel for heating and air conditioning system

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT INSTRUMENT PANEL TRIM

Replacement

Release screws (1).

Remove air conditioning control panel (2) from instrument panel trim (3).

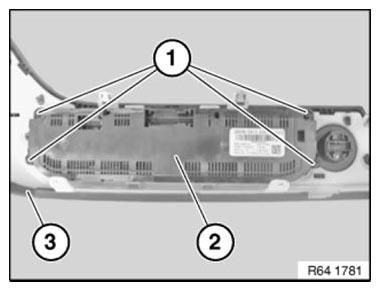

Fig 1: Identifying Air Conditioning Control Panel On Instrument Panel Trim With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out vehicle programming/coding .
