Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Remove WHEEL

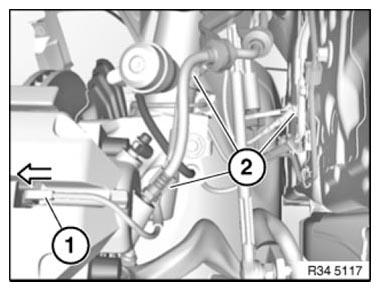

Detach brake pad sensor (1) in direction of arrow from brake pad.

Disengage line from cable guides (2).

Fig 1: Removing Brake Pad Sensor From Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

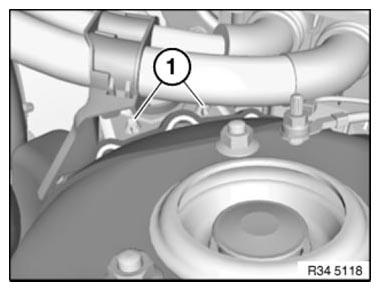

Press together retaining lugs (1) of cable holder on spring strut and remove cable tie in downward direction.

Installation:

Replace cable holder if retaining lugs are damaged.

Make sure retaining lugs are correctly seated.

Fig 2: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

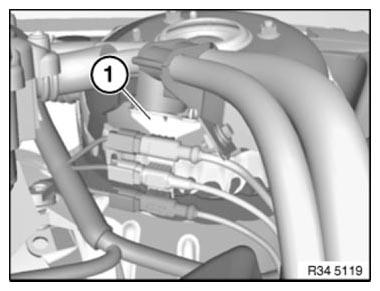

Disconnect relevant plug connection on cable holder (1).

Unclip plug housing on cable holder.

Fig 3: Identifying Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.
