41 34 041 Replacing Complete Tail Panel: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
NOTE:
Observe new procedure for bonding and riveting (refer to REPAIR STAGE 2 ).
Operation is partially described on the left side. Right side identical.
Operation is partially described on the left side. Right side identical.
The following new body parts are required:

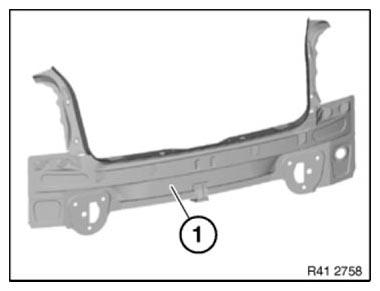

- (1) Rear panel
The following consumables are required:
MATERIAL CHART
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 40 |
| Punch rivets N4 | 8 |
| EMC screws | 2 |
| Cavity sealing wax remover | |
| CleanerR1 | 1 |
| Sealant D1 |
