41 00... Information On Metal Filler: Processing

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

The working temperature of the metal filler must be at least 18°C.

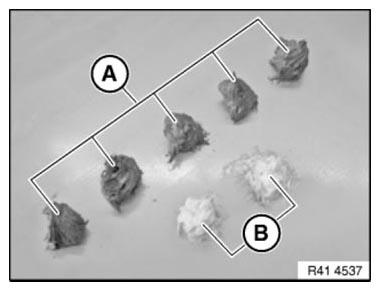

Fig 1: Identifying Metal Filler And Hardener
G06890315Courtesy of BMW OF NORTH AMERICA, INC.

A = Metal filler

B = Hardener

NOTE: The mixture ratio refers to the volume.

Mix metal filler in mixture ratio of 5:2. Mix components thoroughly and free of pores.

IMPORTANT: Do not stir components. Danger of air pockets in metal filler.

Working life of the metal filler is approx. 45 minutes.
