01 07 02 (884)

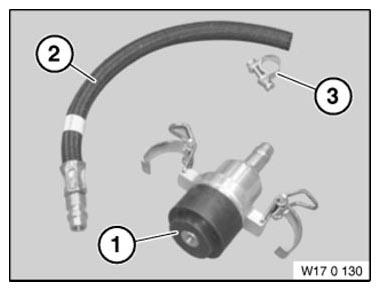

Consisting of:
1 = 0494430 Adapter
NOTE:
Connection from pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000 , Liquidation of existing inventory and then available only via this complete tool set (83 30 0 494 429)
2 = 0494431 Hose
NOTE:
(Hose with coupling) Connection of pump 17 0 101 to adapter 17 0 007 Liquidation of existing inventory and then available only via this complete tool set (83 30 0 494 429)
3 = 0494761 Clamp
NOTE:
(Hose clamp) for hose 17 0 132 Liquidation of existing inventory and then available only via this complete tool set (83 30 0 494 429)
