SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 07 02 (884)

Consisting of:

1 = 0494418 Pump

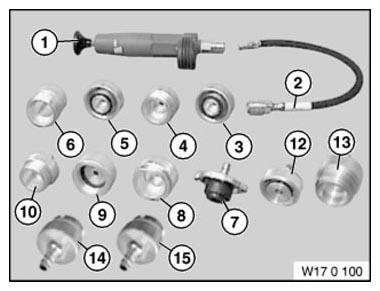

Fig 1: Identifying Tester (170100)

2 = 0494419 Hose

NOTE: (hose with quick-release coupling)

3 = 0494420 Adapter

NOTE: For radiator cap (normal thread)

4 = 0494421 Adapter

NOTE: For radiator cap (normal thread)

5 = 0494422 Adapter

NOTE: For radiator cap (sawtooth thread)

6 = 0494423 Adapter

NOTE: For radiator cap (sawtooth thread)

7 = 0494424 Adapter

NOTE: For radiator cap R50/W10

8 = 0494425 Adapter

NOTE: For radiator cap R50/W10

9 = 0494426 Adapter

NOTE: For radiator connection R53/W11, R50/W17 adapter corresponds to 17 0 051

10= 0494427 Adapter

NOTE: For radiator cap R53/W11, R50/W17 adapter replaced 17 0 052.

11= 0494428 Case

12= 0494642 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64

13= 0494643 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64

14= 0495889 Adapter

NOTE: For radiator cap Model series: N12, N14
