SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

00 02 99 (399)

Consisting of:

1= 0494122 Cable cabinet

NOTE: Without content and without accessories Base for cable cabinet I and II

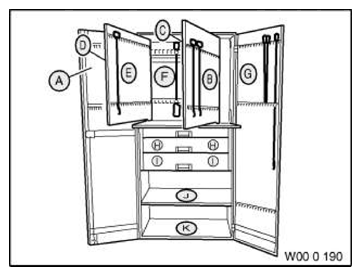

Fig 1: Identifying Cable Cabinet (000190)

Courtesy of BMW OF NORTH AMERICA, INC.

6= 0494123 Frame

NOTE: (Frame) swivel panel frame, support of the cable suspensions in cable cabinets I and II discontinued, available as part of set of special tools only

9= 0494124 Floor

NOTE: (Floor) Only for cable cabinet I Deletion, only available via tool set

2= 0490072 Foil

NOTE: (Foil set I) For identification of the storage locations in the cable cabinet I - valid status in each case

3= 0490073 Holder

NOTE: (Cable holder set - H -) For cable cabinet I only 24 guide rails with 15 holding straps each for accommodating the adapter cables

4= 0490074 Cable holder

NOTE: (Cable holder) Cable holder - B - For mounting the engine test cable For extending the cable suspensions in cable cabinet I and II

7= 0493529 Drawer block

NOTE: Only for cable cabinet I Deletion, only available via tool set

8= 0493530 Magnet

NOTE: (Magnet) Magnet with roller. For better fixation and spacing of the swivel panels - Only for retrofitting in cable cabinets I and II Deletion, only available via tool set

10= 0493532 Register

NOTE: For locating the BMW special tools for the vehicle electrical system in cable cabinet I and II
