28 00 060 Replacing output flange radial shaft seal (GS7D36SG)
Special tools required:
Any dirty parts must be cleaned before the hydraulic cap is loosened.
After completion of work, check GEARBOX OIL LEVEL .
Use only the approved TRANSMISSION OIL .
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.
Necessary preliminary work:
- Remove underbody protection. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR UNDERBODY PROTECTION .
- Remove heat shields.
- Remove EXHAUST SYSTEM .
- Support transmission from underneath.
- Remove TRANSMISSION CROSS MEMBER .
- Remove propeller shaft.
- Tasks are described in Removing PROPELLER SHAFT .

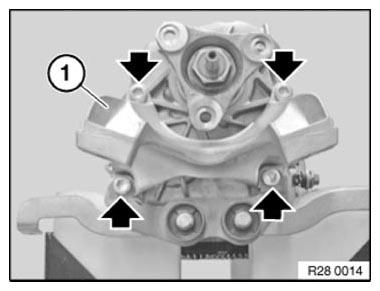

Release screws.
Remove transmission bearing block (1).
Tightening torque: 22 32 2AZ .

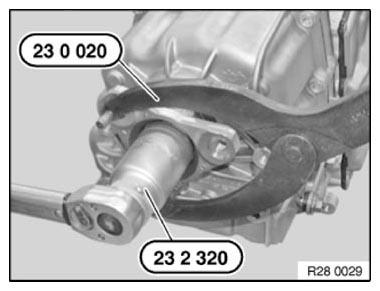

Grip output flange (1) with special tool 23 0 020 .
Release nut with special tool 23 2 320 .
Tightening torque: 28 10 14AZ .
Installation note:
Replace nut and secure with Loctite 243.

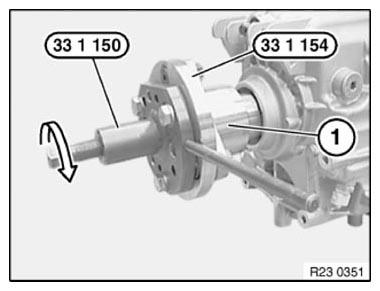

Detach output flange (1) with special tool 33 1 150 and adapter plate 33 1 154 from output shaft.

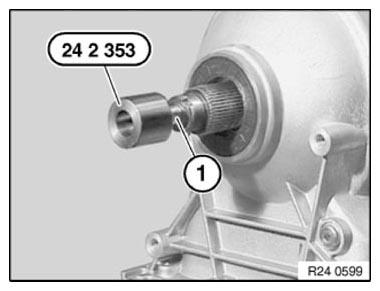

Attach special tool 24 2 353 to output shaft (1).
Graphic shows: Automatic transmission

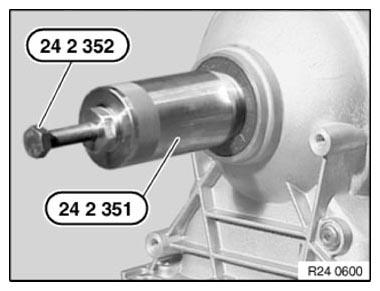

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.
Pull out radial shaft seal by screwing in special tool 24 2 352 .
Graphic shows: Automatic transmission

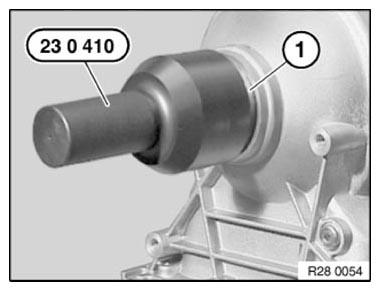

Apply oil to the sealing lip of radial shaft seal (1). Drive in radial shaft seal (1) with special tool 23 0 410 as far as it will go.
Graphic shows: Automatic transmission
