12 42 500 Replacing the positive battery cable between the starter motor, alternator and positive battery connection point (N54)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Open cover.

Slacken nut (1).

Tightening torque 12 42 3AZ .

Remove positive battery cable lead (2) from positive battery connection point.

Fig 1: Identifying Positive Battery Cable Lead And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on starter motor.

Tightening torque 12 42 2AZ .

Disconnect positive battery cable from starter motor.

Release nut (2) on alternator.

Tightening torque 12 42 1AZ .

Feed out positive battery cable from clamp (3) and remove.

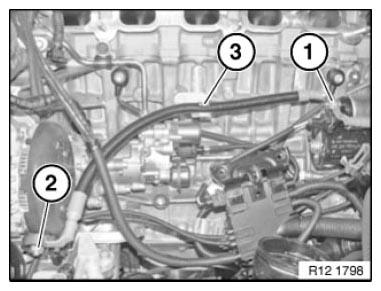

Fig 2: Identifying Positive Battery Cable Clamp, Starter Motor And Alternator Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
Check stored fault messages.
Delete fault memory.
