26 12 011 Replacing grooved ball bearing in propeller shaft center bearing

Special tools required:

• 23 1 160
• 33 3 202
• 33 3 203

Necessary preliminary tasks:

• Replace PROPELLER SHAFT CENTER BEARING

Press grooved ball bearing using special tool 23 1 160 out of center mount (1).

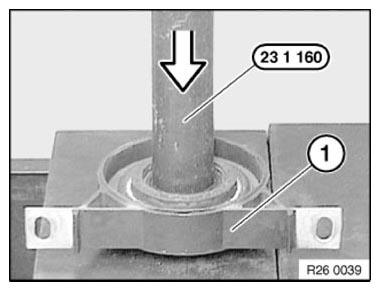

Fig 1: Pressing Grooved Ball Bearing Using Special Tool (23 1 160)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber-coated bearing seat of center mount (2) with Circolight (part number 83 19 9 407 771).

Use special tools 33 3 202 /33 3 203 to press grooved ball bearing (1) into center mount (2).

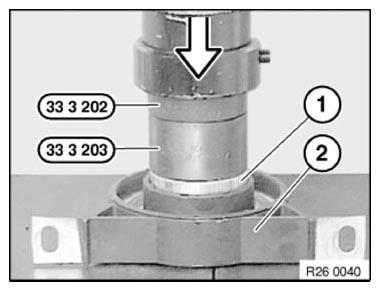

Fig 2: Pressing Groove Ball Bearing Into Center Mount Using Special Tools (33 3 202 And 33 3 203)

Courtesy of BMW OF NORTH AMERICA, INC.
