62 11 280 Removing and installing/replacing instrument cluster

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Extend steering column completely and set in downward position.

Release screw (1).

Fold back instrument cluster (2) in direction of arrow and pull out towards rear.

Unlock associated plug connection and disconnect.

Remove instrument cluster (2).

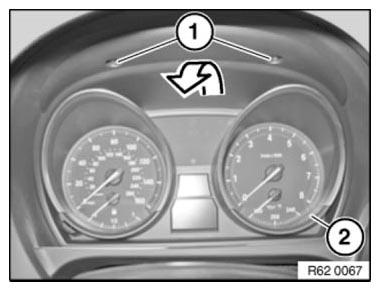

Fig 1: Fold Back Instrument Cluster In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) of instrument cluster (2) must be exactly seated in mountings of instrument panel.

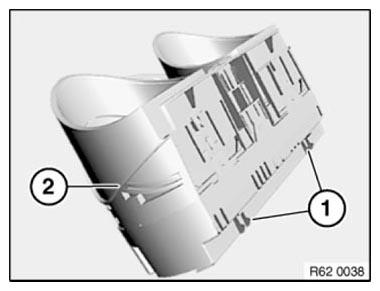

Fig 2: Identifying Instrument Cluster Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding using scan tool.
